Product name

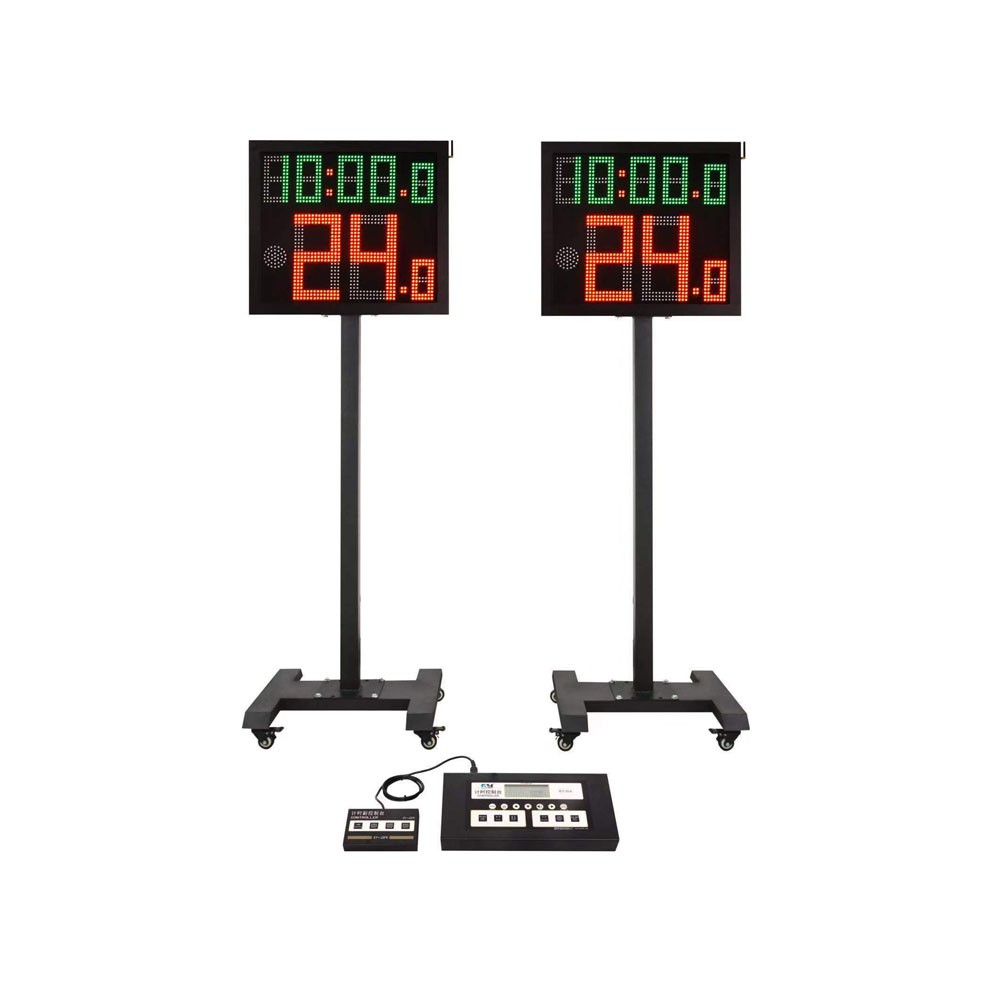

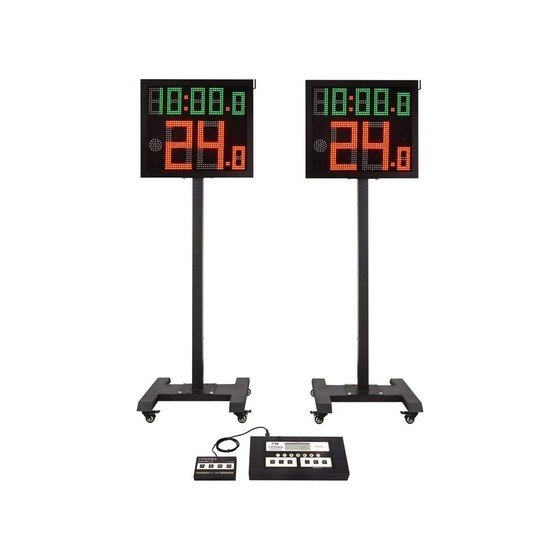

Basketball 24 Sec Shot Clock

Frame material

iron box

Size

630X560X100 (unit: mm)

Feature

Added the function of match fast setting and resound;

Race time upgrade to 1/10 second can be set (to meet the needs of more events);

Display brightness six adjustable (meet indoor and outdoor brightness requirements);

The wireless communication frequency band can be set (effectively isolating the

interference in the close frequency band of the site);

Display board digital display with original isometric typesetting, so that the display

is more clear and full;

The console adopts numerical control chassis and LCD synchronous display interface,

making the control more simple and intuitive.

Wireless transmission and isolated wired transmission interface is fully equipped,

making product data transmission more convenient and reliable;

Solid iron spray frame makes the product stable and reliable.

Functions

0-99 minutes 59 seconds 1/10 seconds and 0-99 seconds countdown or 0-99 minutes

59 seconds 1/10 seconds and 0-99 seconds forward timing arbitrary settings,

countdown to zero and 24 seconds violation or forward timing display

to set the value of automatic

three-second sound and light alarm.

Display device: Φ 5 red and 5 green Φ highlight LED

Signal transmission: wireless transmission, maximum transmission distance 150m

(without shielding)

Wired transmission, with 45 meters transmission cable

Voltage range: AC90 ~ 264V 50 ~ 60Hz

Maximum power consumption: 75W/ set

Configuration

1 master console;

1 timing assistant console;

2 Single 24-second display;

1 set of bracket for single side 24 second ball rack;Main control station power

(1.8m/root) line 1;

2 Single 24 second display board power cord (12 m/root);

3 Antenna;

1 copy of operation manual and assembly drawing

名称

24秒计时系统

外框材质

铁箱

外框尺寸

630X560X100（单位：mm）

主要特点

新增赛时快设和讯响器功能；

赛时升级至1/10秒可设置（满足更多赛事需求）；

显示亮度六段可调（满足室内和室外亮度需求）；

无线通信频段可设定（有效隔离使用场地相近频段干扰）；

显示牌数字显示采用独创等距排版，使显示更为清晰饱满；

控制台采用数控机箱并配以液晶同步显示界面，使操控更为简单而直观；

无线传输和隔离式有线传输接口配备齐全，使得产品数据传输更加便捷可靠；

坚固的铁制喷塑外框使产品稳定而可靠。

主要功能

0-99分59秒1/10秒和0-99秒倒计时或者0-99分59秒1/10秒和0-99秒正计时任意设

置，倒计时至零和24秒违例或者正计时显示至设置值时自动三秒声光报警。

显示器件：Φ5红色和Φ5绿色高亮LED

信号传输：无线传输，最大传输距离150m（无屏蔽物遮挡）

有线传输，配45米传输电缆（本型号默认无线传输，有线传输需要额外配置电缆）

电压范围：AC90～264V 50～60Hz

最大功耗：75W/套

配置包括

主控台一台

计时副控台一个

单面24秒显示牌两个

单面24秒球架安装支架一副

主控台电源（1.8米/根）线一根

单面24秒显示牌电源线（12米/根）两根

天线三根

使用说明书和装配图纸一份
