Product name

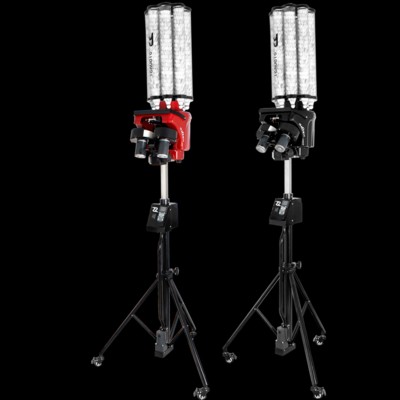

Badminton Shuttlecock Machine S4025

Products description

1. Full-functions with remote control (speed,frequency ,angle and so on )

2. Intelligent drop point , self-programming system ,can set different mode

3. High performance of photoelectric sensors makes the machine runs more

 stably and reliably.

4. Remote control with different vertical and horizontal elevation, arbitrary

choice of placement

5. The battery with large capacity can last 2.5-3.5 hours which allows

you to have fun when playing.

6. Automatic lifting with light touch control panel

7. Wide range of voltage 100V--240V ,Over-current protection ,rest

assured to use

8. Adjusting the shooting angle dynamoelectric, highest 8M .

9. Smash functions, with fast speed

10. Smart remote control with LCD screen,clear and easy to operate

11 .Remote control with different angle and three line functions

12. Random function

13. One button to choose six kinds of cross-line ball

14. One button to choose different horizontal ball.

15. One button to adjust different elevation

16. One button to pause,convenience to use

17. The key components: shooting wheels and the main motor with high

quality materials are durable,motor service life can be up to 10 years

18.  Suitable for any shuttlecock( nylon , plastic and so on )

19. The body structure is dexterous , portable handle ,easy installation .

20. Folding tripod with wheels and brake ,Convenience to use

21. Continuous training 200balls ,challenge the limit

22. Luxurious design,can be placed in the trunk of any cars after folding it,

easy to carry

Product Parameters

(1)Voltage : AC 100---240V  ,DC:12V

(2)Speed:   20-140km/hours

(3)Frequency:  1.2-4.5seconds

(4)Elevation : Automatic by remote control

(5)Horizontal : Automatic by remote control

(6)Shooting direction : External

(7)Ball capacity : 180pcs

(8)Color : Black

(9)Lifting : 0-70cm

(10)Power : 100W

名称

便携式羽毛球/网球训练网架

规格

净重：21.76KG（主机12.46KG,三脚架6.7KG,球笼2.6KG）

毛重：38KG

机器体积

主机:45*32*35CM

球笼：31*31*62CM

纸箱包装体积

主机:55*50*45CM

装球笼:68*35*37CM

三脚架：28.5*21.5*145CM

功能

1. 全功能智能遥控（速度，频率，角度等）；

2，自动升降，低位置及高位置均可以发球；

3，无与伦比的俯仰角调整系统，发球高度最高可以达到7.5米；

4，遥控任意俯仰角度，“宽、中、窄”三线球功能；

5，一键选择“6种交叉固定模式”发球；

6，智能落点编程，任意自编不同模式发球训练。

参数

1、装球容量：180粒

2、使用电源：交直流两用电源，交流100V-240V，直流12V。配锂电池（3-4小时）

3、速度：20-140KM/H；频率：1.2-4.5秒/球

4、府仰角调整：35°～-18°（遥控控制）；水平角度：33°（自动控制）

5、升降系统：可调节0-70cm

6、功率：主机120W,电动升降25W

7、随机配件：电源线1条、四方柱1个、三角架1套、遥控器1个、球笼1个、

遥控器电池1对、锂电池一个、

充电器1个、无头螺丝1个、2.5L型内六角扳手1个、3L型内六角扳手1个。
